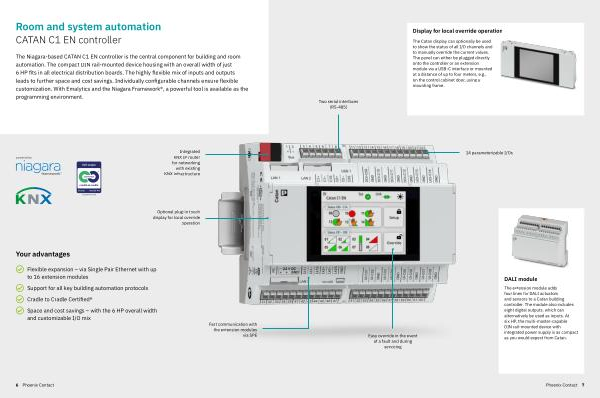

Display for local override operation
The Catan display can optionally be used to show the status of all I / O channels and to manually override the current values. The panel can either be plugged directly onto the controller or an extension module via a USB-C interface or mounted at a distance of up to four meters, e. g., on the control cabinet door, using a mounting frame.
Two serial interfaces( RS-485)
14 parameterizable I / Os
DALI module
Easy override in the event of a fault and during servicing
The extension module adds four lines for DALI actuators and sensors to a Catan building controller. The module also includes eight digital outputs, which can alternatively be used as inputs. At six HP, the multi-master-capable DIN rail-mounted device with integrated power supply is as compact as you would expect from Catan.
