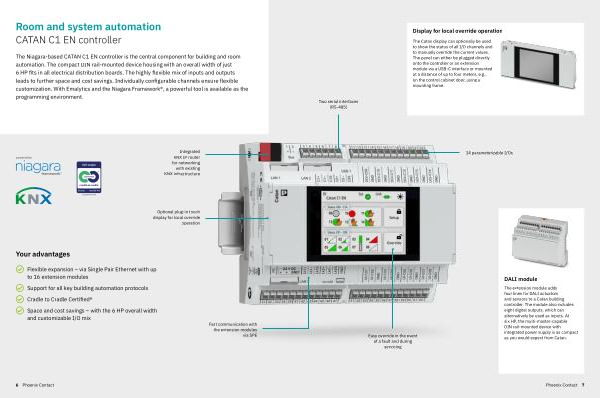

Room and system automation CATAN C1 EN controller
The Niagara-based CATAN C1 EN controller is the central component for building and room automation. The compact DIN rail-mounted device housing with an overall width of just 6 HP fits in all electrical distribution boards. The highly flexible mix of inputs and outputs leads to further space and cost savings. Individually configurable channels ensure flexible customization. With Emalytics and the Niagara Framework ®, a powerful tool is available as the programming environment.
Integrated KNX IP router for networking with existing KNX infrastructure
Optional plug-in touch display for local override operation
Your advantages
✓ Flexible expansion – via Single Pair Ethernet with up to 16 extension modules
✓ Support for all key building automation protocols
✓ Cradle to Cradle Certified ®
✓ Space and cost savings – with the 6 HP overall width and customizable I / O mix
Fast communication with the extension modules via SPE
