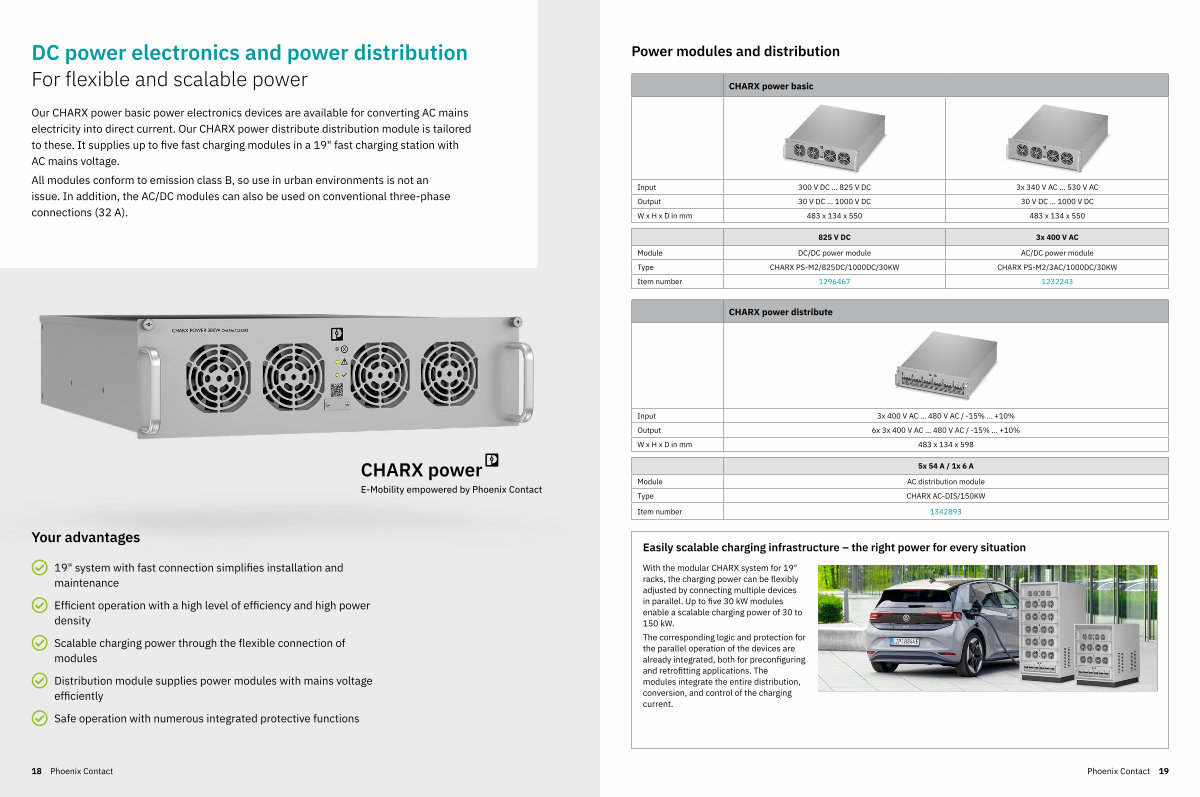

Power modules and distribution
CHARX power basic
Input 300 V DC … 825 V DC 3x 340 V AC … 530 V AC Output 30 V DC … 1000 V DC 30 V DC … 1000 V DC W x H x D in mm 483 x 134 x 550 483 x 134 x 550
|
825 V DC |
3x 400 V AC |
Module |
DC / DC power module |
AC / DC power module |
Type |
CHARX PS-M2 / 825DC / 1000DC / 30KW |
CHARX PS-M2 / 3AC / 1000DC / 30KW |
Item number |
1296467 |
1232243 |
CHARX power distribute
Input 3x 400 V AC … 480 V AC /-15 % … + 10 % Output 6x 3x 400 V AC … 480 V AC /-15 % … + 10 % W x H x D in mm 483 x 134 x 598
5x 54 A / 1x 6 A
Module Type
AC distribution module CHARX AC-DIS / 150KW
Item number 1342893
Easily scalable charging infrastructure – the right power for every situation
With the modular CHARX system for 19 " racks, the charging power can be flexibly adjusted by connecting multiple devices in parallel. Up to five 30 kW modules enable a scalable charging power of 30 to 150 kW.
The corresponding logic and protection for the parallel operation of the devices are already integrated, both for preconfiguring and retrofitting applications. The modules integrate the entire distribution, conversion, and control of the charging current.
