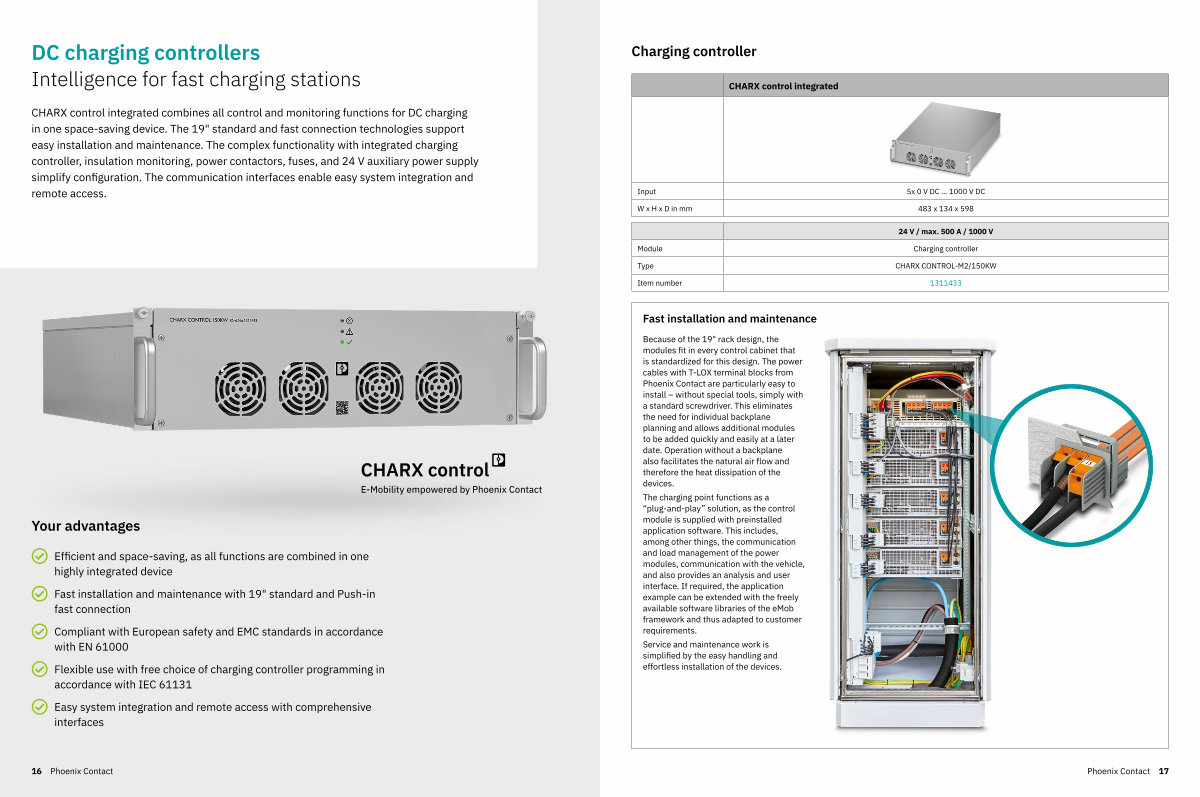

Charging controller
CHARX control integrated
Input
5x 0 V DC … 1000 V DC W x H x D in mm 483 x 134 x 598
24 V / max. 500 A / 1000 V
Module Type
Charging controller CHARX CONTROL-M2 / 150KW
Item number 1311433
Fast installation and maintenance
Because of the 19 " rack design, the modules fit in every control cabinet that is standardized for this design. The power cables with T-LOX terminal blocks from Phoenix Contact are particularly easy to install – without special tools, simply with a standard screwdriver. This eliminates the need for individual backplane planning and allows additional modules to be added quickly and easily at a later date. Operation without a backplane also facilitates the natural air flow and therefore the heat dissipation of the devices.
The charging point functions as a“ plug-and-play” solution, as the control module is supplied with preinstalled application software. This includes, among other things, the communication and load management of the power modules, communication with the vehicle, and also provides an analysis and user interface. If required, the application example can be extended with the freely available software libraries of the eMob framework and thus adapted to customer requirements.
Service and maintenance work is simplified by the easy handling and effortless installation of the devices.
