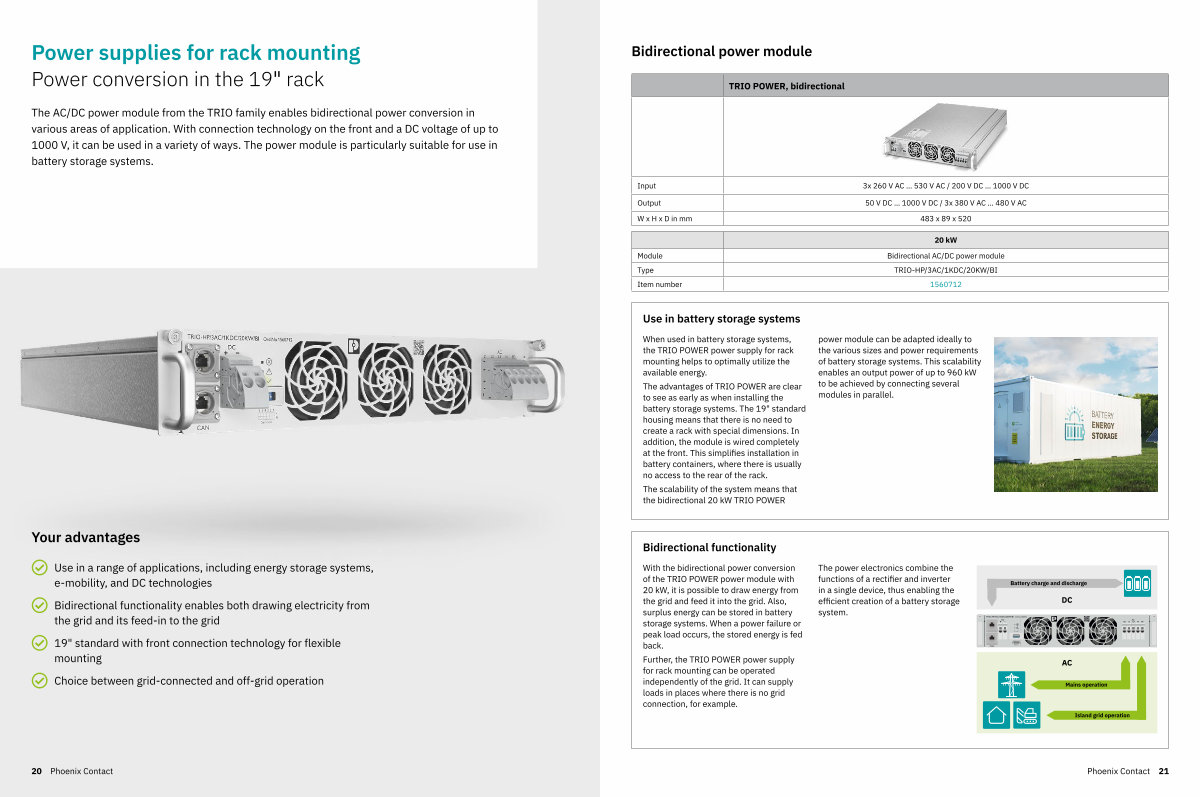

Bidirectional power module
TRIO POWER, bidirectional
Input Output
3x 260 V AC … 530 V AC / 200 V DC … 1000 V DC 50 V DC … 1000 V DC / 3x 380 V AC … 480 V AC
W x H x D in mm 483 x 89 x 520
20 kW |
Module |
Bidirectional AC / DC power module |
Type |
TRIO-HP / 3AC / 1KDC / 20KW / BI |
Item number |
1560712 |
Use in battery storage systems
When used in battery storage systems, the TRIO POWER power supply for rack mounting helps to optimally utilize the available energy.
The advantages of TRIO POWER are clear to see as early as when installing the battery storage systems. The 19 " standard housing means that there is no need to create a rack with special dimensions. In addition, the module is wired completely at the front. This simplifies installation in battery containers, where there is usually no access to the rear of the rack.
The scalability of the system means that the bidirectional 20 kW TRIO POWER power module can be adapted ideally to the various sizes and power requirements of battery storage systems. This scalability enables an output power of up to 960 kW to be achieved by connecting several modules in parallel.
Bidirectional functionality
With the bidirectional power conversion of the TRIO POWER power module with 20 kW, it is possible to draw energy from the grid and feed it into the grid. Also, surplus energy can be stored in battery storage systems. When a power failure or peak load occurs, the stored energy is fed back.
Further, the TRIO POWER power supply for rack mounting can be operated independently of the grid. It can supply loads in places where there is no grid connection, for example.
The power electronics combine the functions of a rectifier and inverter in a single device, thus enabling the efficient creation of a battery storage system.
TRIO-HP / 3AC / 1KDC / 20KW / BI Ord. No. 1560712 DC
AC +
L1 L2 L3 N PE
X
CAN
Battery charge and discharge
DC
AC
Mains operation
Island grid operation
