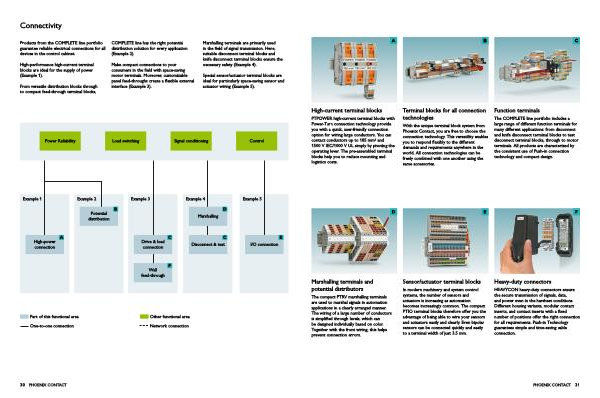

Connectivity
Products from the COMPLETE line portfolio guarantee reliable electrical connections for all devices in the control cabinet .
High-performance high-current terminal blocks are ideal for the supply of power ( Example 1 ).
From versatile distribution blocks through to compact feed-through terminal blocks ,
COMPLETE line has the right potential distribution solution for every application ( Example 2 ).
Make compact connections to your consumers in the fi eld with space-saving motor terminals . Moreover , customizable panel feed-throughs create a fl exible external interface ( Example 3 ).
Marshalling terminals are primarily used in the fi eld of signal transmission . Here , suitable disconnect terminal blocks and knife disconnect terminal blocks ensure the necessary safety ( Example 4 ).
Special sensor / actuator terminal blocks are ideal for particularly space-saving sensor and actuator wiring ( Example 5 ).
Power Reliability Load switching Signal conditioning Control
Example 1 Example 2 Example 3 Example 4 Example 5
Potential distribution |
B |
Marshalling |
D |
High-power connection |
A |
Drive & load connection |
C |
Disconnect & test
C
|
I / O connection
E
|
|
|
Wall feed-through |
F |
|
|
Part of this functional area One-to-one connection
Other functional area Network connection
