Simple, individual confi guration of current transformer sets
Use our current transformer disconnect terminal blocks to design space-saving and modular switching devices. The pluggable CLIPLINE complete system accessories for testing and short-circuiting the current transformers as well as potential distribution can be placed inside the terminal strips according to the specifi c application.
Easy and safe connection of protection relay testing
Protective devices for high-voltage current transformers are tested regularly. The modular, pre-confi gured FAME plugs and terminal strips offer all switching actions for safe protective testing, enabling time-saving measuring and testing processes.
Web code: # 0131
Web code: # 1095

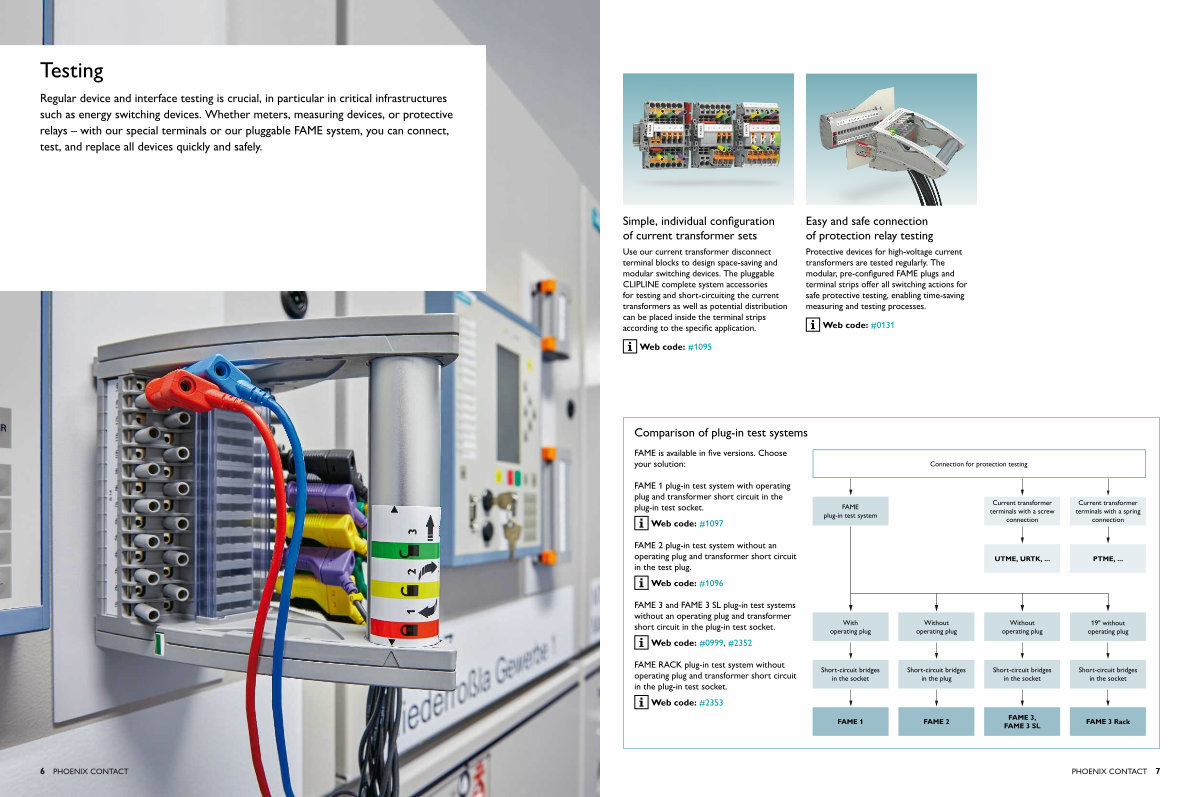

Comparison of plug-in test systems
FAME is available in fi ve versions. Choose your solution:
Connection for protection testing
FAME 1 plug-in test system with operating plug and transformer short circuit in the plug-in test socket.
Web code: # 1097
FAME plug-in test system
Current transformer terminals with a screw connection
Current transformer terminals with a spring connection
FAME 2 plug-in test system without an operating plug and transformer short circuit in the test plug.
Web code: # 1096
UTME, URTK,... PTME,...
FAME 3 and FAME 3 SL plug-in test systems without an operating plug and transformer short circuit in the plug-in test socket.
Web code: # 0999, # 2352
With operating plug
Without operating plug
Without operating plug
19 " without operating plug
FAME RACK plug-in test system without operating plug and transformer short circuit in the plug-in test socket.
Short-circuit bridges in the socket
Short-circuit bridges in the plug
Short-circuit bridges in the socket
Short-circuit bridges in the socket
Web code: # 2353
FAME 1
FAME 2
FAME 3, FAME 3 SL
FAME 3 Rack
