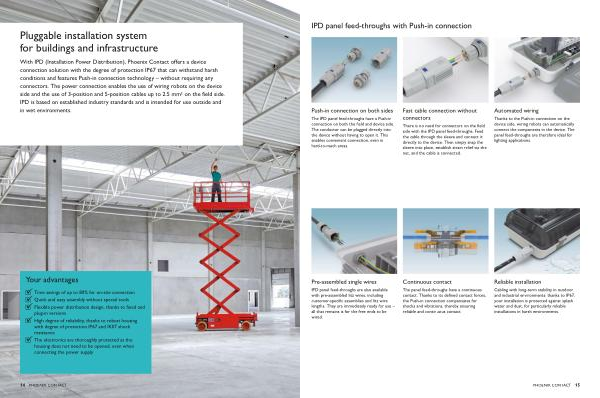

IPD panel feed-throughs with Push-in connection
Push-in connection on both sides
The IPD panel feed-throughs have a Push-in connection on both the field and device side . The conductor can be plugged directly into the device without having to open it . This enables convenient connection , even in hard-to-reach areas .
Fast cable connection without connectors
There is no need for connectors on the field side with the IPD panel feed-throughs . Feed the cable through the sleeve and connect it directly to the device . Then simply snap the sleeve into place , establish strain relief via the nut , and the cable is connected .
Automated wiring
Thanks to the Push-in connection on the device side , wiring robots can automatically connect the components in the device . The panel feed-throughs are therefore ideal for lighting applications .
Pre-assembled single wires
IPD panel feed-throughs are also available with pre-assembled litz wires , including customer-specific assemblies and litz wire lengths . They are immediately ready for use – all that remains is for the free ends to be wired .
Continuous contact
The panel feed-throughs have a continuous contact . Thanks to its defined contact forces , the Push-in connection compensates for shocks and vibrations , thereby ensuring reliable and continuous contact .
Reliable installation
Cabling with long-term stability in outdoor and industrial environments : thanks to IP67 , your installation is protected against splash water and dust , for particularly reliable installations in harsh environments .
