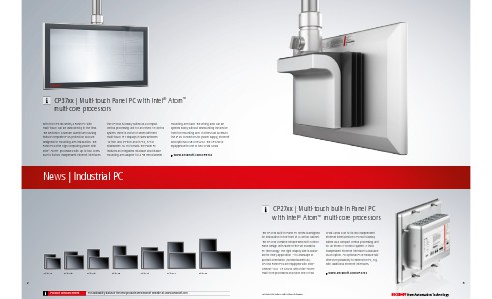

CP37xx | Multi-touch Panel PC with Intel® Atom™
multi-core processors
With the CP37xx series, a Panel PC with
multi-touch can be used directly in the field.
The devices in a slender aluminium housing
feature complete IP 65 protection and are
designed for mounting arm installation. The
Panel PCs offer high computing power with
Intel® Atom™ processors with up to four cores.
Due to its two independent Ethernet interfaces
the CP37xx is ideally suited as a compact
central processing unit for an EtherCAT control
system. There is choice of seven different
multi-touch TFT displays in sizes between
12-inch and 24-inch and in 4:3, 5:4 or
widescreen 16:19 formats. The Panel PC
features an integrated rotatable and tiltable
mounting arm adapter for a 48 mm diameter
mounting arm tube. The wiring area can be
opened easily without dismounting the device
from the mounting arm. It offers fast access to
the IP 65 connectors for power supply, Ethernet
and optional USB or RS232. The CP37xx is
equipped with one or two CFast cards.
www.beckhoff.com/CP37xx
News | Industrial PC
CP3712
CP3715
CP3716
CP3718
CP3719
CP3721
2
Product announcement
For availability status of the new products see Beckhoff website at: www.beckhoff.com
CP3724
