+60 °C
-25 °C

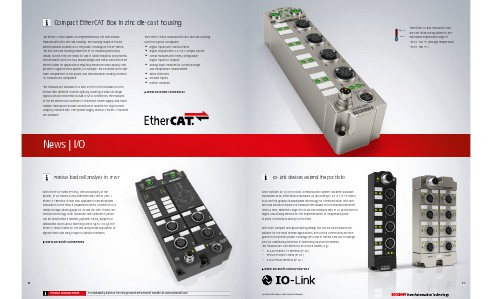

The EtherCAT Box modules in zinc
die-cast finish are qualified for the
extended temperature range of
-25 to +60 °C (storage temperature
-40 to +85 °C).
IO-Link devices extend the portfolio
Since October 2013, the IO-Link communication system has been available
worldwide as an international standard (IS) according to IEC 61131-9 and is
thus the first globally standardised technology for communication with sensors and actuators below the fieldbus level. Based on this standard Beckhoff
offers a new, extensive range of IO-Link box modules with IP 67 protection for
digital and analog sensors for the implementation of inexpensive pointto-point connections directly in the field.
With their compact and space-saving design the IO-Link box modules are
suitable for the most diverse applications. The IO-Link connections are integrated in the proven plastic housings (EPI) and in the die-cast zinc housings
(ERI) for additional protection in extremely harsh environments.
The modules are connected via an IO-Link master, e.g.:
– EL6224 EtherCAT Terminal (IP 20)
– EP6224 Ether 4B&
