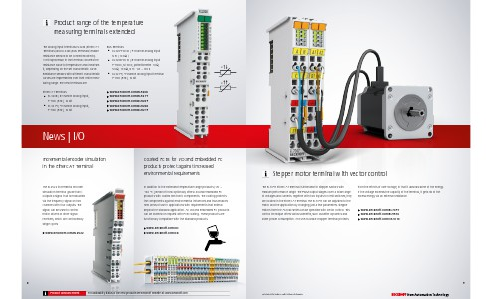

Product range of the temperature
measuring terminals extended
The analog input terminals EL32xx (EtherCAT
Terminals) and KL32xx (Bus Terminals) enable
resistance sensors to be connected directly.
A microprocessor in the terminal converts the
resistance value to temperature and linearises
it, depending on the set characteristic curve.
Resistance sensors with different characteristic
curves are implemented over their entire measuring range. The new terminals are:
.
.
EtherCAT Terminals
EL3208 | 8-channel analog input,
PT100 (RTD), 16 bit
EL3214 | 4-channel analog input,
PT100 (RTD), 16 bit
.
.
.
Bus Terminals
KL3204-0030 | 4-channel
