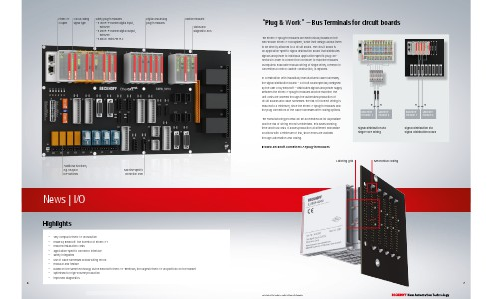

EtherCAT
Coupler
Colour coding
signal type
Additional functions,
e.g. relays or
DIP switches
Safety plug-in modules:
– EJ1904: 4-channel digital input,
TwinSAFE
– EJ2904: 4-channel digital output,
TwinSAFE
– EJ6900: TwinSAFE PLC
Digital and analog
plug-in modules
Motion modules
Status and
diagnostic LEDs
Machine-specific
connection level
News | I/O
Highlights
–
–
–
–
–
–
–
–
–
–
6
very compact EtherCAT I/O solution
made by Beckhoff: the inventor of EtherCAT
reduced installation costs
application-specific connector interface
safety integrated
use of cable harnesses avoids wiring errors
modular and flexible
based on the same technology as the Beckhoff EtherCAT Terminals, the largest EtherCAT I/O portfolio on the market
optimised for high-volume production
improved diagnostics
